HUADA Micro Rectangular Electrical Connector CDbA-31TY: 1.27mm Contact Spacing, 3A Current, 600V Pressure Resistant

Experience exceptional electrical connectivity with HUADA's CDbA-31TY micro rectangular electrical connector, meticulously designed to meet the stringent demands of harsh environments and mission-critical applications. Its compact design, featuring a 1.27mm contact spacing and 1.1mm row spacing, ensures precise mating and minimal crosstalk. The 0.05mm²~0.15mm² wire crimping cross-sectional area provides secure wire termination, while the wide operating temperature range of -55°C to +125°C guarantees reliable performance in extreme conditions. This connector is built to withstand the rigors of demanding environments, including high humidity (40℃, 96%), low pressure (4.4 KPa), intense vibration (10~2000Hz 196m/S2), and potential impacts (490 m/s2). With a current rating of 3 A and an insulation resistance of 5000 mΩ, the CDbA-31TY ensures stable signal transmission even under heavy loads.

Key Features of the CDbA-31TY High-Performance HUADA Micro Rectangular Connector

The HUADA CDbA-31TY micro rectangular electrical connector is designed for precision applications. With a contact spacing of 1.27mm and a crimping cross-sectional area suitable for 0.05mm² to 0.15mm² wire, this connector ensures reliable connections in demanding environments. Its impressive features include:
Temperature Range: Operating from -55°C to +125°C, the CDbA-31TY withstands extreme conditions.
Current Rating: Capable of handling up to 3A, making it suitable for various electronic devices.
Insulation Resistance: With 5000 mΩ insulation resistance, it ensures signal integrity.
Mechanical Durability: Designed for 500 cycles, ensuring long-lasting performance.
Pressure Resistance: Rated at 600V, ideal for industrial and automotive applications.
Vibration Tolerance: Survives vibrations from 10Hz to 2000Hz at 196m/S².
Low Contact Resistance: Only 8 mΩ for efficient power transmission.
Impact Resilience: Handles impacts up to 490 m/s².

Technical Features Table:

CDbA-31TY micro rectangular electrical connector

micro rectangular electrical connector

CDbA-31TY

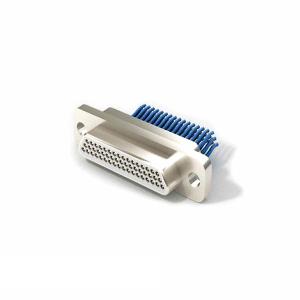

HUADA Micro Rectangular Electrical Connector CDbA-31TY Images
